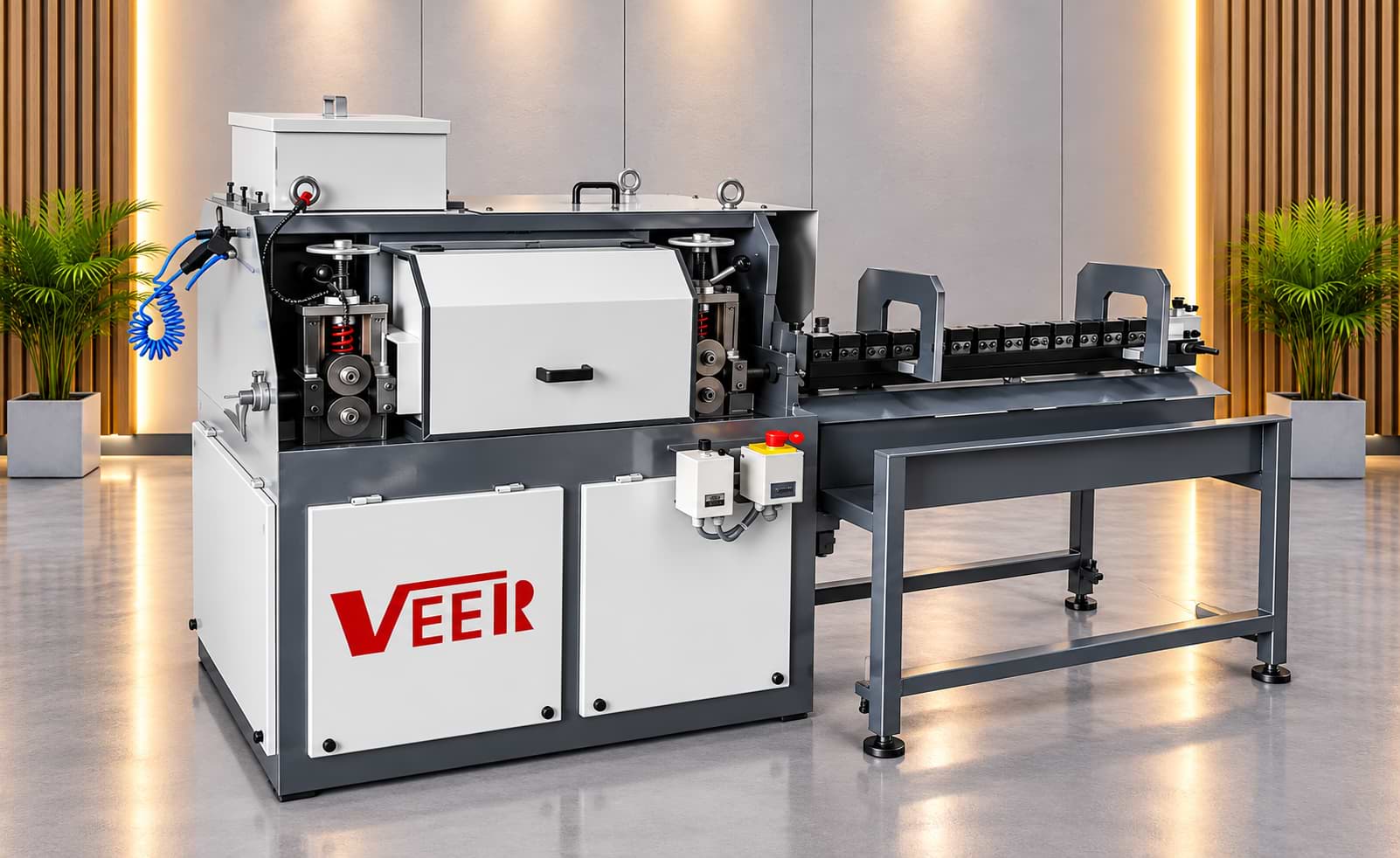

Super 500 Eco Plain Wire Straightening Machine
Let's connect with us
Super 500 Eco Plain Wire Straightening Machine in India
The Super 500 Eco Plain Wire Straightening Machine by Veer Machinery is designed to provide accurate, efficient, and reliable wire straightening and cutting solutions for industrial applications. With its robust construction and user-friendly design, this machine helps ensure smooth operation, consistent wire quality, and improved production efficiency.
The Super 500 Eco is developed to meet the requirements of wire processing industries, fabrication workshops, and manufacturing units. Its practical design focuses on precision, durability, and ease of operation, making it a suitable choice for businesses looking for cost-effective wire processing solutions.Features
- Maintenance free design
- Closed universal box conveyor
- Individual motor for each motion thus easily controllable
- After sales service
- Anti vibration mountings to isolate spindle vibrations
- Close fit tolerances
- Chain drive for pulling roller
- Automatic wire oiling system(optional)
- Spindle rpm upto 5000 rpm for better straightening
- Welded body for sturdy construction
- Coil tightening mechanism and brake system in de-coiler for unmatched performance
- Aesthetic look to suite your permises
Technical Specifications
| Specification | Details |
|---|---|
| Wire Range | 1.2 – 5 mm |
| Maximum Feeding Speed | 30 metres/min |
| Connected Load | 56 HP |
| Minimum Cutting Length | 100 mm |
| Maximum Cutting Length | 6000 mm |
| Maximum Cuts per Minute | 90 |
